Thermal Camera for Automotive Diagnostics R942
Sale price
$39.50
Regular price $162.10
Skip to product information

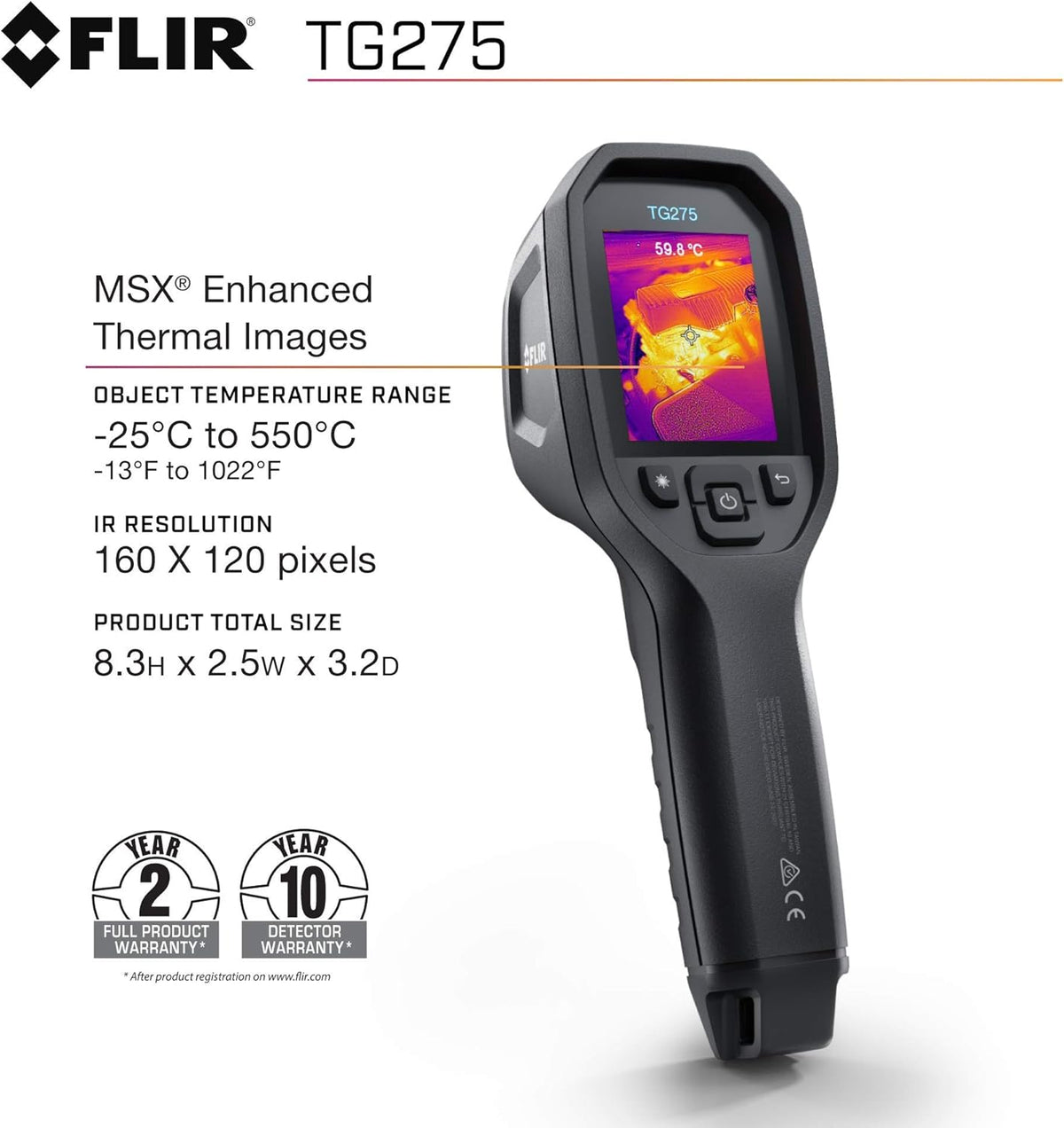

IDENTIFY MORE PROBLEMS, FASTER: 19,200 pixel IR camera and temperature range up to 550°C (1022°F) surpass the limitations of spot IR thermometers.

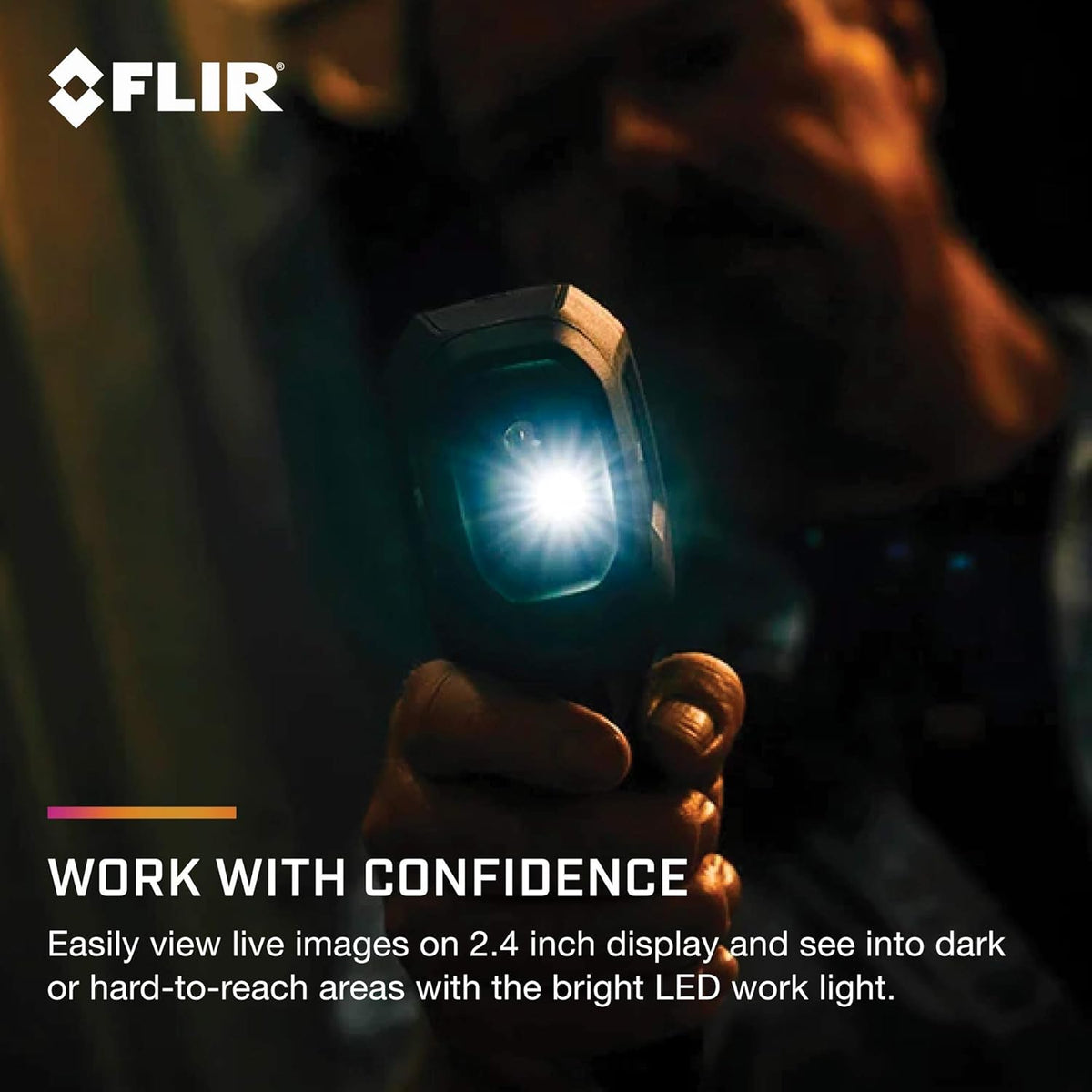

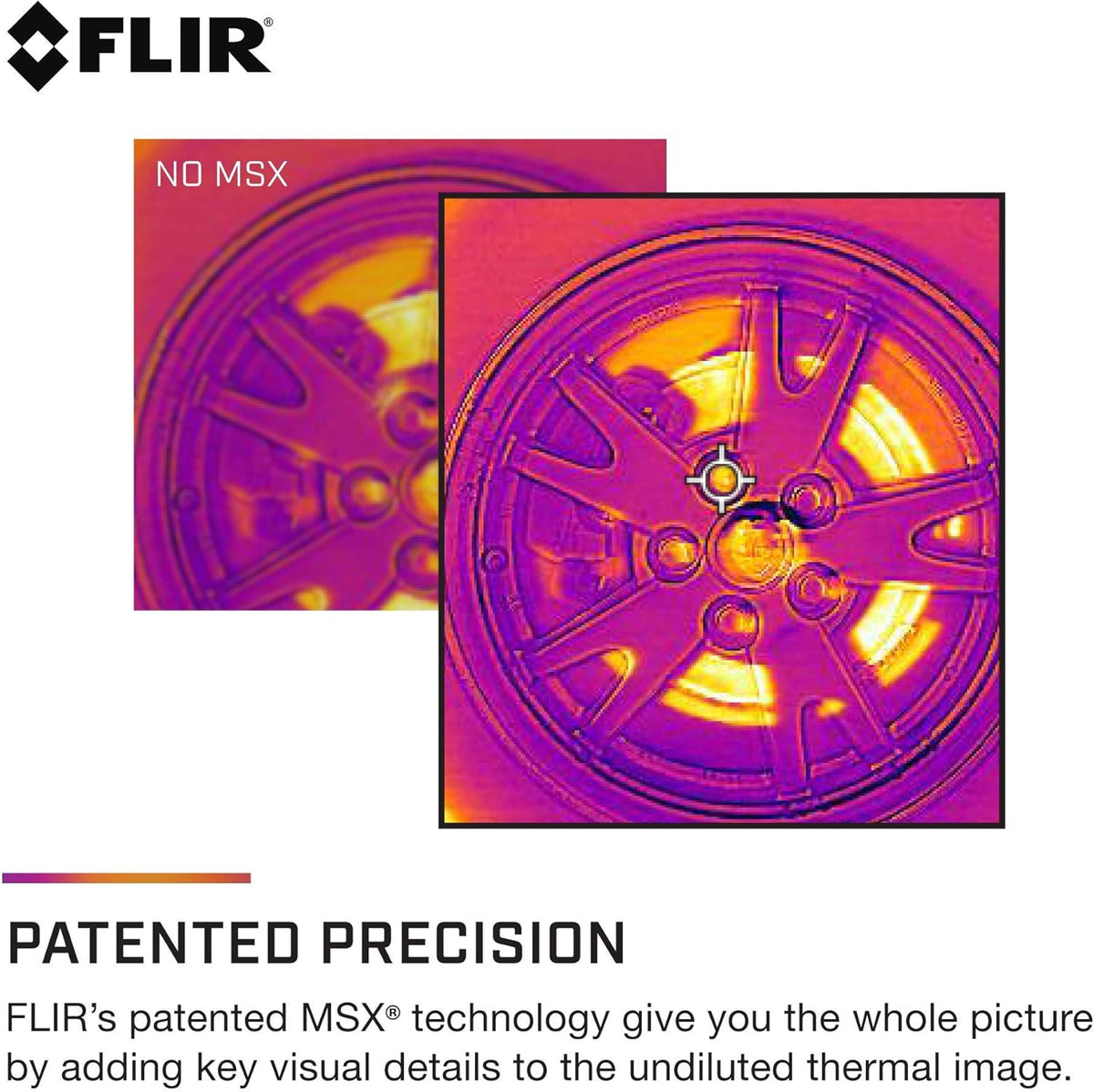

SUPERIOR IMAGE QUALITY, AFFORDABLE PRICE: Get the sharp visual detail of FLIR MSX, displayed on a vibrant 2.4-inch screen.
RUGGED AND RELIABLE: Tough, drop-tested design with an IP54 enclosure that protects the camera from dirt, dust, and oil.
DETECTOR TYPE: Focal plane array (FPA), uncooled microbolometer
LASER: Class 1 laser indicates the temperature measurement area; button-activated
Industrial & Scientific Test, Measure & Inspect Temperature & Humidity
Thermal Camera for Automotive Diagnostics R942
Sale price
$39.50
Regular price $162.10
Shipping calculated at checkout.
IDENTIFY MORE PROBLEMS, FASTER: 19,200 pixel IR camera and temperature range up to 550°C (1022°F) surpass the limitations of spot IR thermometers.
SUPERIOR IMAGE QUALITY, AFFORDABLE PRICE: Get the sharp visual detail of FLIR MSX, displayed on a vibrant 2.4-inch screen.
RUGGED AND RELIABLE: Tough, drop-tested design with an IP54 enclosure that protects the camera from dirt, dust, and oil.
DETECTOR TYPE: Focal plane array (FPA), uncooled microbolometer
LASER: Class 1 laser indicates the temperature measurement area; button-activated

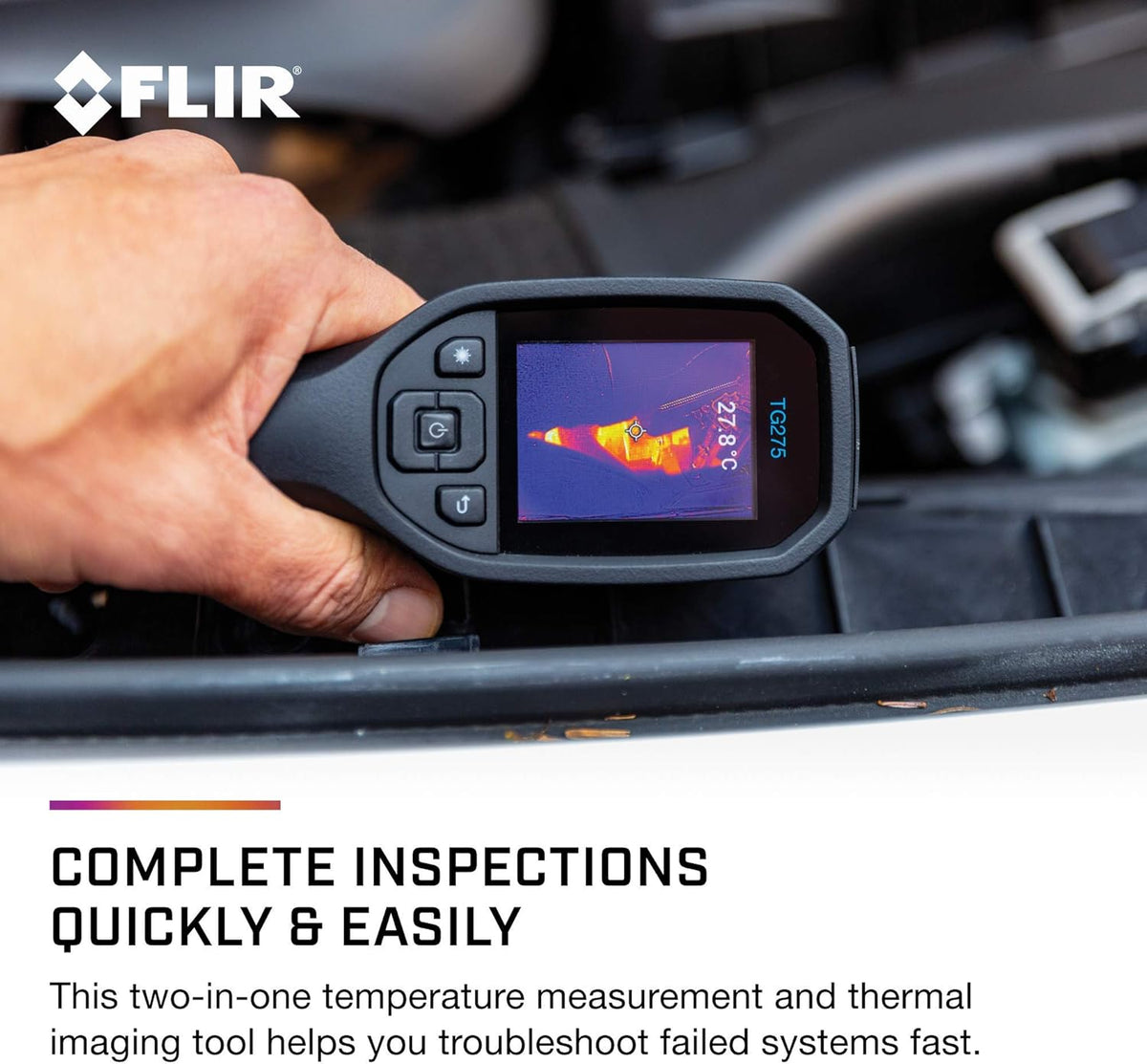

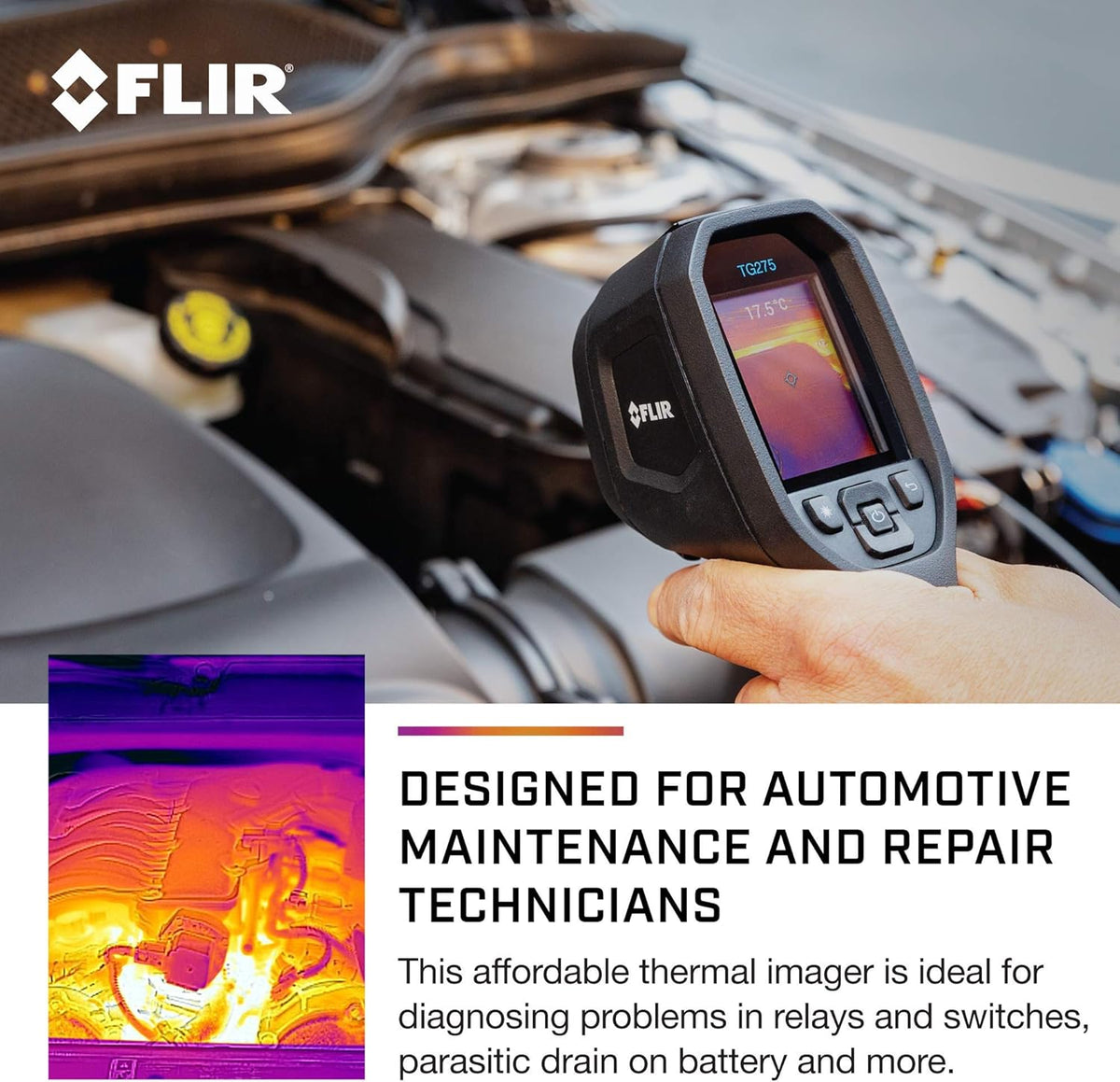

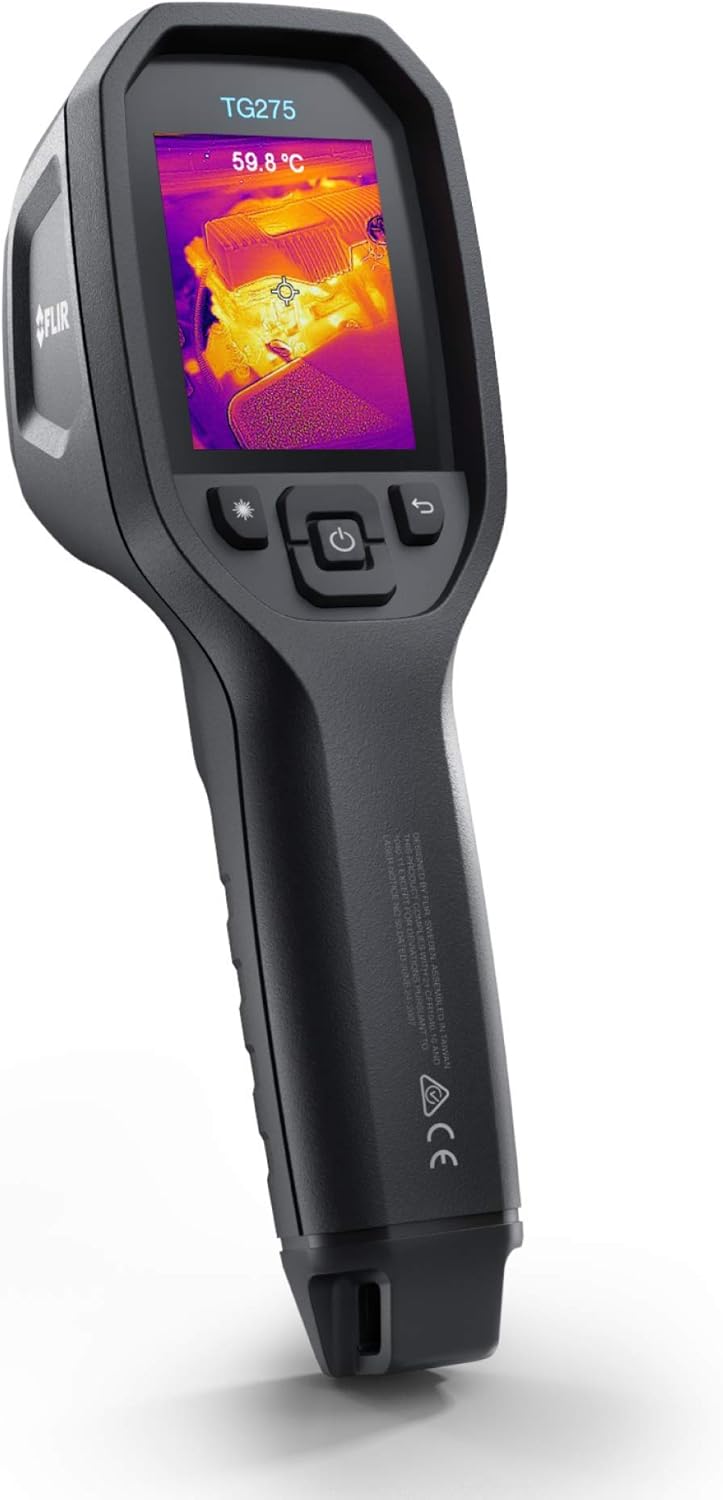

The FLIR TG275 is designed specifically for automotive maintenance and repair technicians who want to accelerate diagnostic procedures and avoid undetected problems. Featuring IGM (Infrared Guided Measurement), this diagnostic tool combines non-contact temperature measurement and thermal imaging to help you troubleshoot repairs, spot potential faults, and record images that will reassure your customer that the problem has been fixed. This affordable thermal imager is ideal for diagnosing problems in relays and switches, parasitic drain on the battery, drive train components, HVAC system (vents), and much more.
| TG165 | TG165-X | TG267 | TG275 | |
|---|---|---|---|---|
| Unit Size (H x W x D) | 186 x 55 x 94 mm (7.3 x 2.2 x 3.7 in) | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) | 210 mm × 64 mm × 81 mm (8.3 in × 2.5 in × 3.2 in) |
| Built-in Illuminator LED | 100 lumens | 100 lumens, 6500 K flashlight | 100 lumens, 6500°K flashlight | |
| Camera weight incl battery | 0.312 kg (11 oz) | 0.394 kg (13.9 oz) | 0.394 kg (13.9 oz) | 0.394 kg (13.9 oz) |
| Detector Type | Focal plane array (FPA), uncooled microbolometer | Focal plane array (FPA), uncooled microbolometer | Focal plane array (FPA), uncooled microbolometer | Focal plane array (FPA), uncooled microbolometer |
| Display | 2.0 in. TFT LCD | 320 × 240 pixel, 2.4 in color LCD | 320 × 240 pixel, 2.4 in color LCD | 320 × 240 pixel, 2.4 in color LCD |
| Laser | Dual diverging lasers indicate the temperature measurement area, activated by pulling the trigger | Class 1 indicating the size of the measurement area | Class 1 laser indicates the temperature measurement area; button-activated | Class 1 laser indicates the temperature measurement area; button-activated |
| Customer Care | 2 Years Product, and 10 Years Thermal Imaging Detector* | 2 Years Product, and 10 Years Thermal Imaging Detector* | 2 Years Product, and 10 Years Thermal Imaging Detector* | 2 Years Product, and 10 Years Thermal Imaging Detector* |

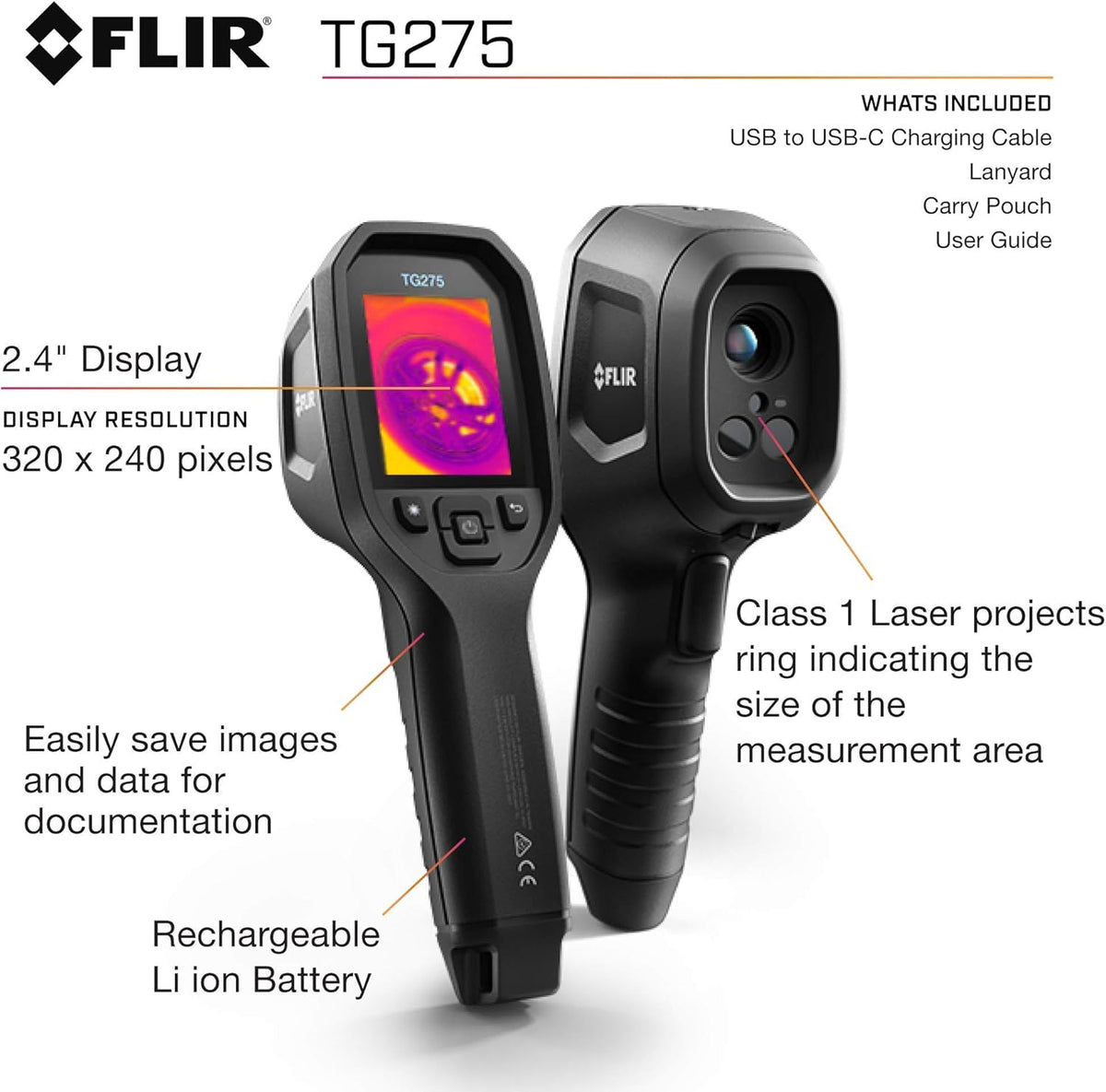

| Includes | Lanyard, USB Cable, International Charger (US, UK, EU, AU, CN) 8 Gb Micro SD Card, Technical Documentation | TG165-X, printed documentation | Camera, wrist strap lanyard, USB cable, pouch, thermocouple, printed documentation | TG275, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch |
